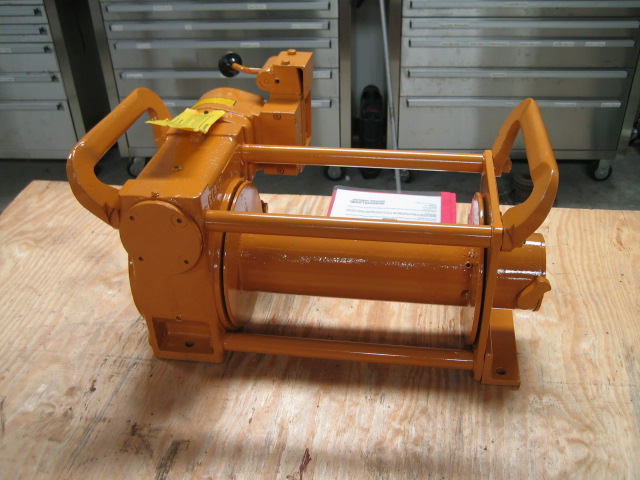

Beebe Brothers / Ingersoll Rand

Model: 1000P60-12

3 HP air motor

** Full Drum Rated Pull**

Rated 1000 pounds @ 60 Feet Per Minute (FPM) on the 7th layer for hoist duty (5:1 safety factor)

Rated 1250 @ 40 fpm for ANSI rating (3.5:1 safety factor)

Rating requires 90 psi air source

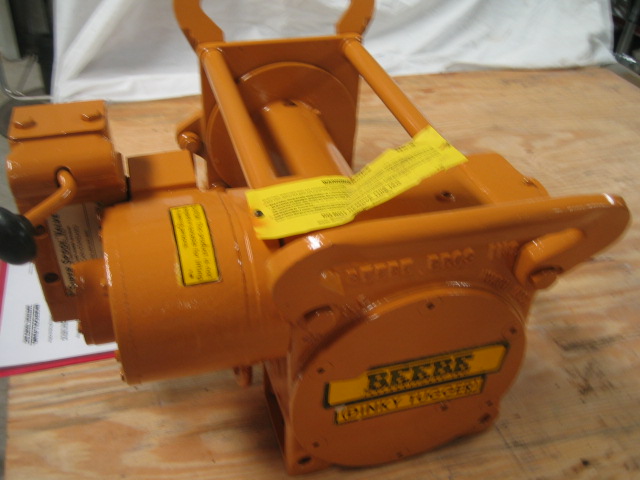

" Dinky Tugger" model air tugger

Reported to  be unused.
Freshened up paint
Shop tested, No leaks, works great!

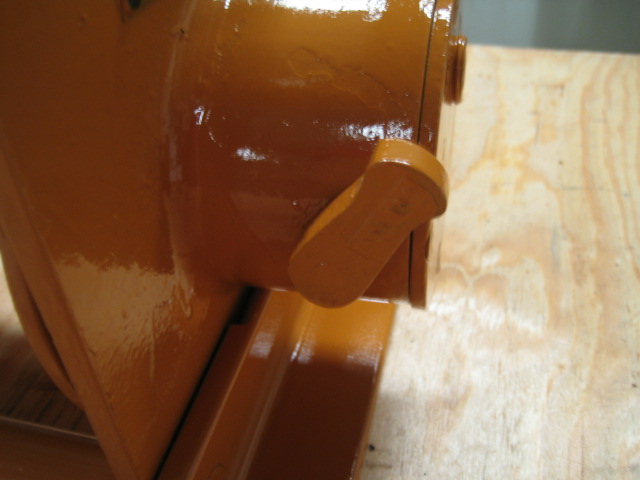

Free spool release lever option
Long drum option (12")
Drum turns in both directions under power (and when free-spooling).
Manual (book) included.

3/4" NPT (female) air supply port is blocked off in photo with a black plastic male 3/4" pipe plug.  Discharge to atmosphere.

Spooling capacities:

3/16ths: 835 feet
1/4": 401 feet
5/16ths: 204 feet
3/8": 124 feet

Net weight 84 pounds without wire rope.

Bolt hole mounting pattern is : 23 and 9/16ths inches by 7 inches.  Bolt holes are 17/32 inch.

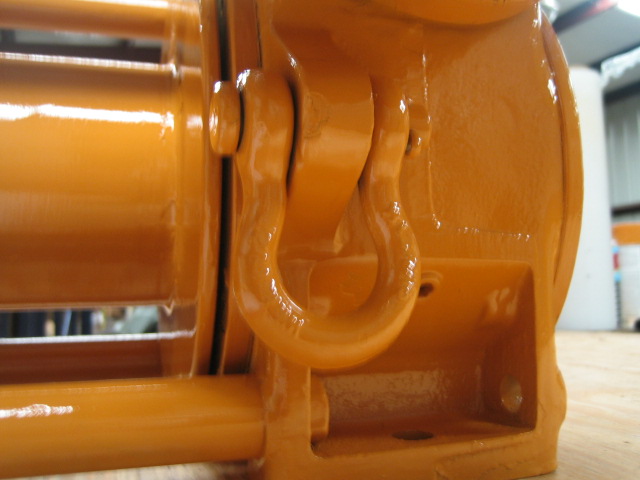

Two shackles are mounted on the rear of the winch, one on either side of the drum to deadman the unit to if not base mounted.

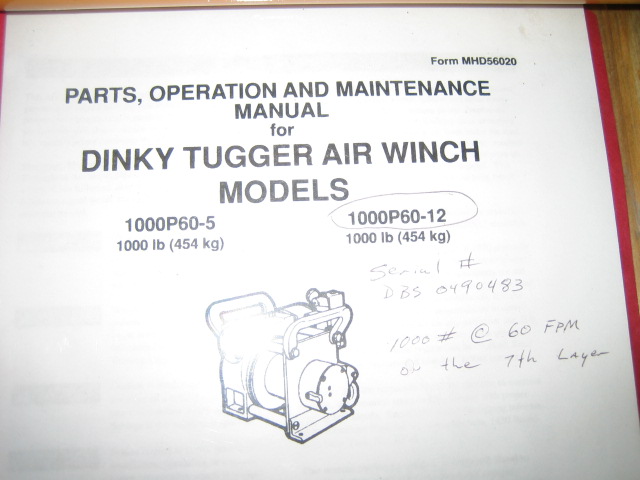

Operations and specifications manual is included.

Fresh paint is a fair job, not 100% great but it'll do.

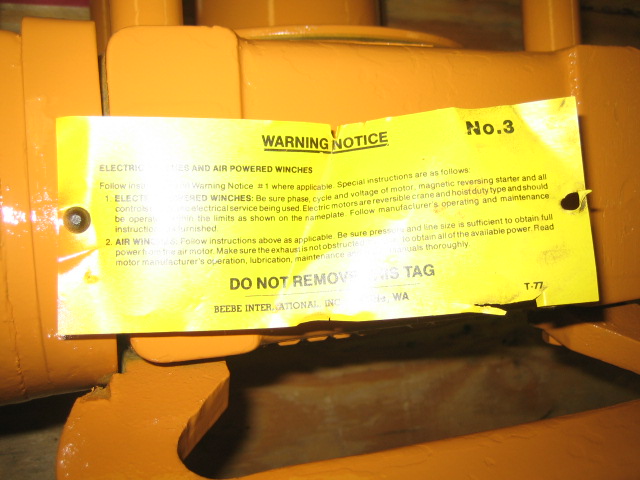

This unit thought to have little to no use due to it's condition and due to the plastic tag still riveted to it, which is rare.

Sold

Contact : @ www.triplecmarine.com or 985-384-9517
